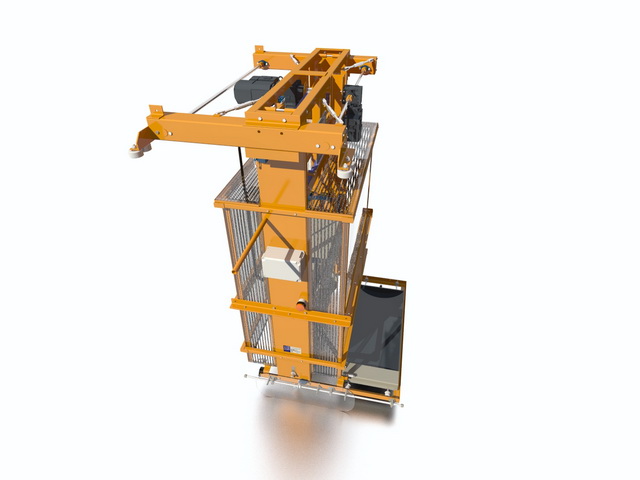

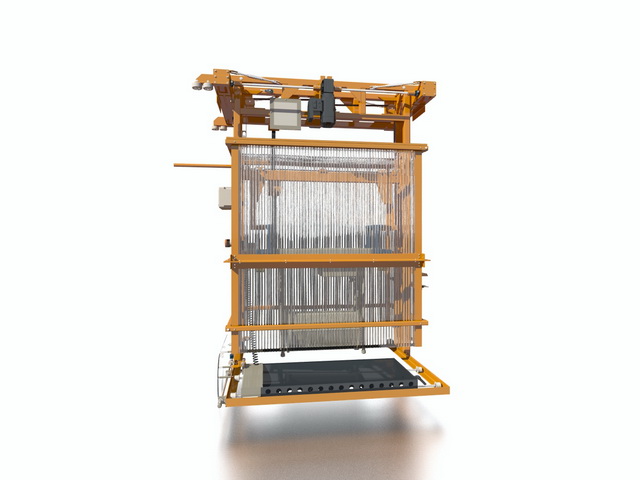

Auto-trolley manipulator

Trolley manipulator is intended for transporting of loads up to 700 kg. Manipulator is a frame with lifting mechanism where drive mechanisms of horizontal and vertical movement of the carriage are mounted. In the transverse direction the operator is held by a bracket with rollers. It is possible to add and install ventilation duct, designed to limit the spread of noxious fumes in the atmosphere. The manipulator is provided with a safety switch. Possible modification of the trolley manipulator is equipped with pneumatic pickup.

The advantages of trolley manipulators manufactured by Poliplast Ltd.:

• High load capacity compared to other manipulators
• The long length of the accepted baths
• Free access to the baths from the both sides

Standard equipment

• Metal frame with drive for horizontal movement
• The carriage with the driver for horizontal movement
• Pickup
• Emergency stop switch
• Sensor of carriage stop
• Laser distance measurement sensor
• Sensor of position engagement
• Sensor of tray stop

Optional extra

• Pallet for catching drops
• Pneumatic take-up of the carriage
• Collision sensor, when using two or more manipulators on one line
• Ventilation skip
• A connection power of the drive of rotation of the drum
