Drying chambers
The drying chambers are intended for drying of parts that have been treated and coated at electroplating lines. The principle of operation of the drying equipment is blowing of products with heated air. To heat the air, electric, steam or water heaters are used. Owing to air recirculation, it is possible to increase the performance of the chambers and reduce the energy consumption of the equipment by reducing the costs for heating of air masses.
Specific features of production of the drying chambers
Poliplast manufactrures the drying chambers for electroplating. These models are intended for drying on racks. The location of the fan relative to the camera and the number of supporting catchers varies depending on the internal space volume and the specifics of operation of the camera.Differences between different types of the drying chambers for electroplating
Having decided to buy a drying chamber, you should choose carefully the appropriate type of equipment, taking into consideration its design and intended use. This will make it possible to use by 100% the capabilities of the equipment and to reduce the cost of the drying operation owing to its competent and safe arrangement.
Просмотр 360°

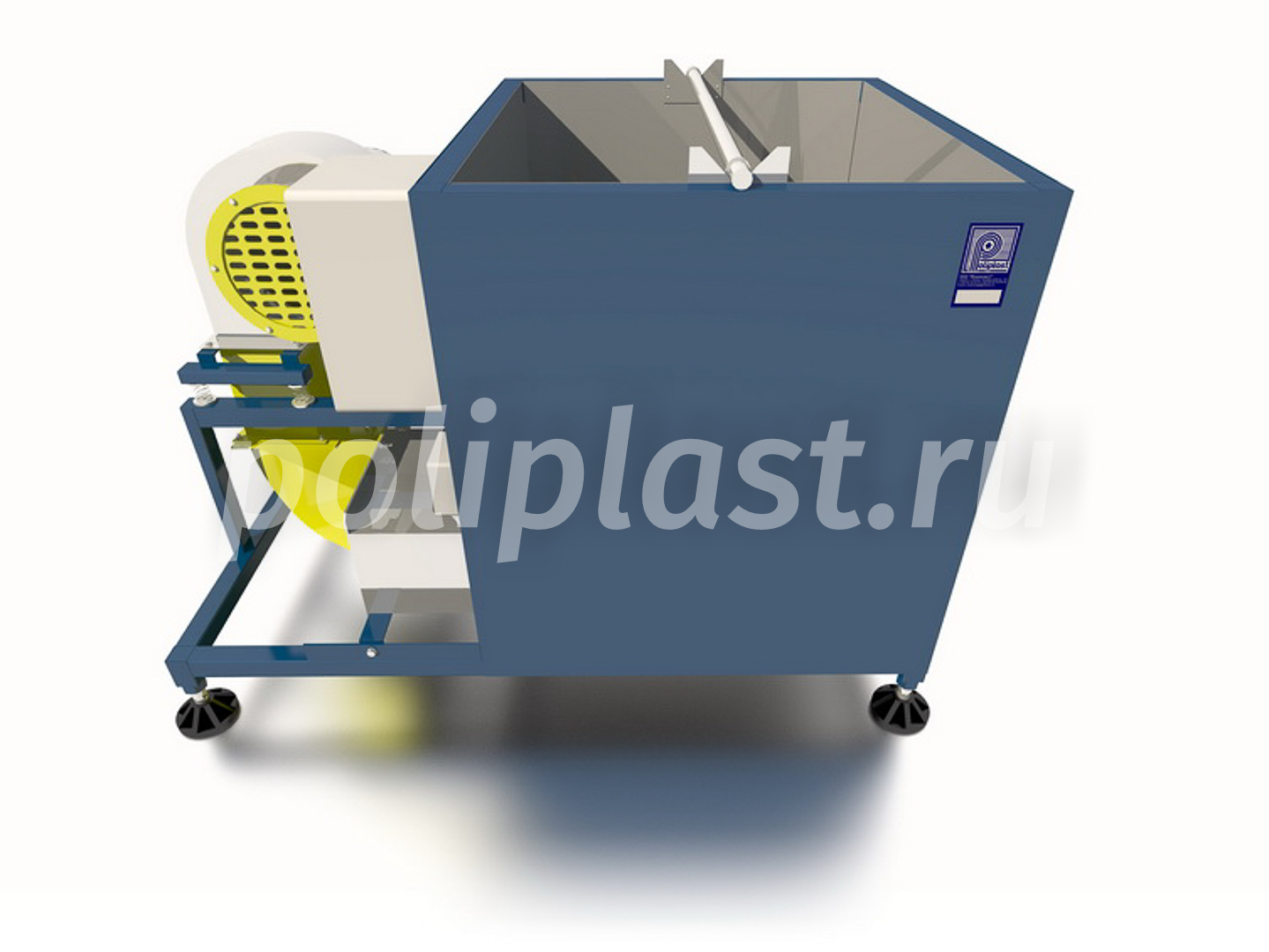

The specific features of this type of equipment include the mutual bracing of the main assemblies. The body has several side and bottom cavities along the long walls of the chamber. The cavities and the body are interconnected by several slotted holes. The fan with nozzles for air injection and exhaust is located at one of the walls. In the upper zone, there is a box connected to one of the suction pipes. The air, heated in the heater, is fed into the cavity and exits through the slots, thereby blowing the rack from all the sides.
Standard equipment
- Carbon steel body, lined with stainless steel
- Thermal insulation
- Integrated support frame with adjustable feet
- High quality finish is chemical-resistant enamel
- Heater or heat exchanger
- The blower motor, mounted on anti-vibration mount
- Temperature sensor for intake air
- Protection sensor against overheating of electric heaters
- Pressure sensor of air flow
- Control system
Optional extra
- Cover

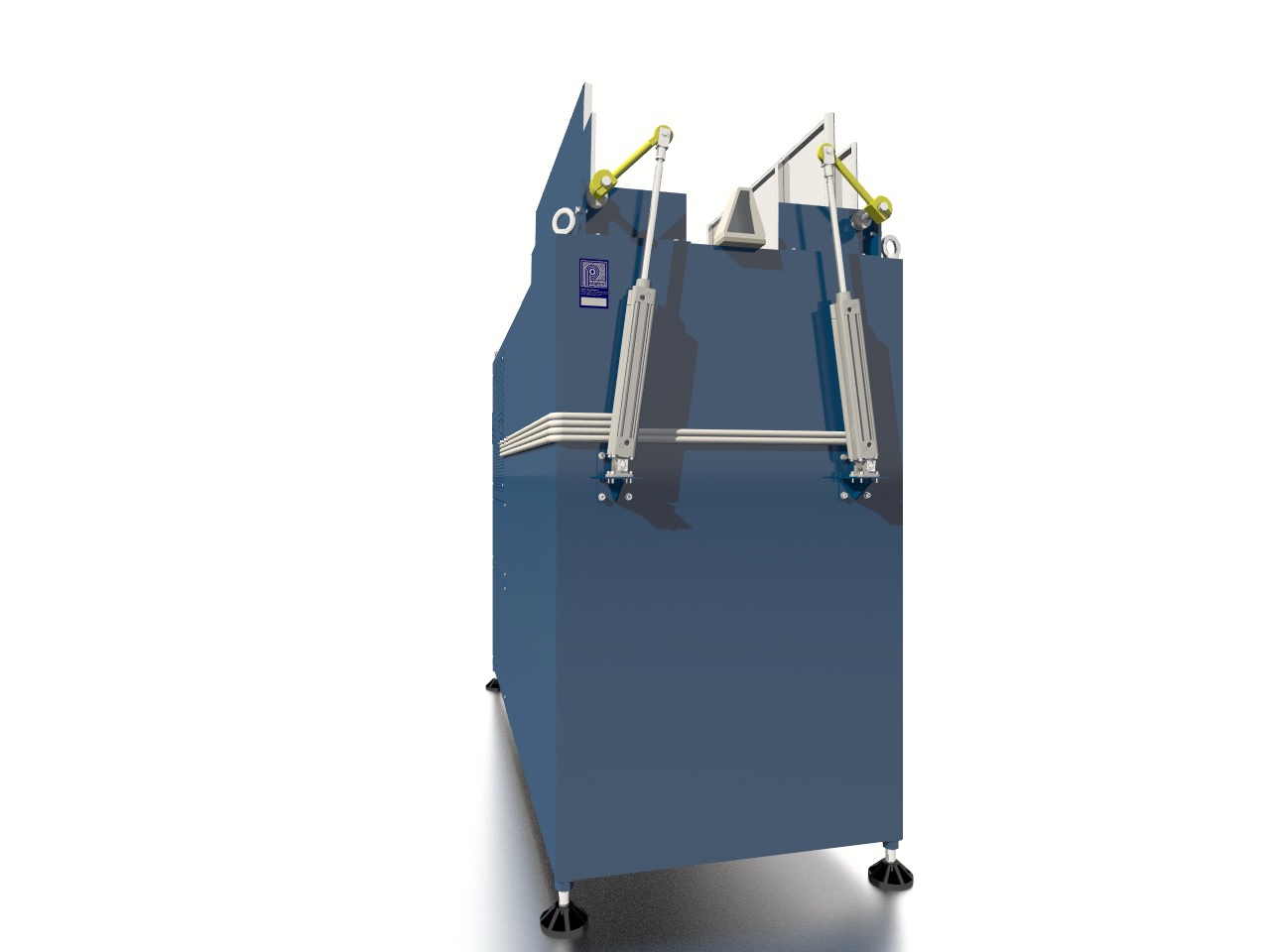

- Pneumatic or electric cover lids
- Catchers for mechanization
- Current lead of drive of rotation of cassette carriages
- Non-communicants rod, in the case of using the drying chamber in manually operarted lines
- System of air knives. For this system you need an additional connection high pressure air to the drying chamber
- Automatic temperature control system
- Automatic control system
Where may the drying chambers be bought at the price of the manufacturer?
Poliplast LLC offers the chambers for drying of parts after electroplating from the manufacturer. The modern shop with a full package of high-tech equipment enables to manufacture products as per standard and individual designs in a short time, taking into consideration the customer expectations. The company has a considerable production experience, over 30 years.Among the advantages of the offered models of the drying chambers, it is worth highlighting:
- Speed of reaching the "operating" temperature simultaneously with decrease in the power of electric heaters, which reduces the energy intensity of the equipment.
- No direct contact with the heating element, which ensures soft heating of workpieces.
- Significant volume of the camera, which makes it possible to place an increased number of parts to dry.
- Low noise level owing to the advanced fan system.
- Simple design that does not require costly and long-term maintenance.
- Option to control the direction of air flow.
- Possibility of heating the working solutions up to +120 °C.
- Availability of operating temperature control and regulation systems.
You may clarify the price of drying chambers and the terms of cooperation with Poliplast LLC by calling the stated phones in Pskov, by filling in the feedback form or by e-mail.
