ARISTO

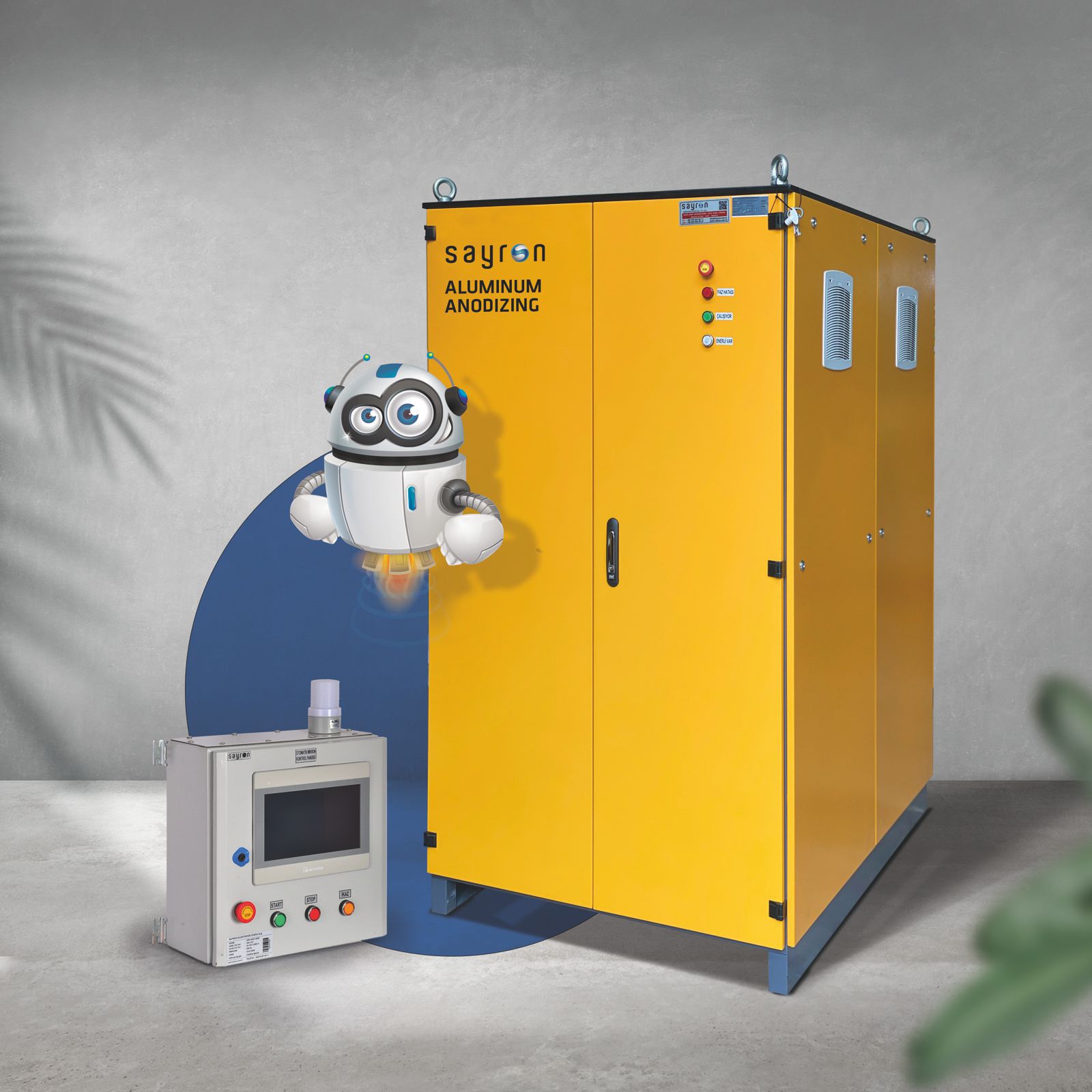

Anodizing coating rectifier
COMMUNICATION
It can be operated with an automation computer, with using communication protocols such as Profibus DP /ProfiNET / Modbus / RS 232 / RS 485 / etc.
USAGE AREAS
Factories which produce aluminium and aluminium plating facilities.
COOLING
Air / Water/ Oil etc.
PRECRIPTION SYSTEM
The difference in temperature effects color of aluminium. Thanks to this system, standard color is always obtained by controlling the temperature.
BATH’S HEAT
The difference in temperature effects color of aluminium. Thanks to this system, standard color is always obtained by controlling the temperature.
AUTOMATIC MICRON
Provides automatic operation according to the desired micron.
TOUCH PANEL
It provides very simple usage thanks to its flexible programming. High visuality and wide screen.
Dimensions
|
|
Ampere
|
А (mm)
|
В (mm)
|
С (mm)
|
|
1000-2000
|
1195
|
600
|
775
|
|
2000-4000
|
1395
|
600
|
875
|
|
4000-6000
|
1595
|
700
|
925
|
|
6000-8000
|
1695
|
900
|
1125
|
|
8000-10000
|
1795
|
900
|
1225
|
|
10000-15000
|
1820
|
1100
|
1500
|
|
15000-20000
|
2100
|
1150
|
1600
|
*Sayron may change specifications without notice
