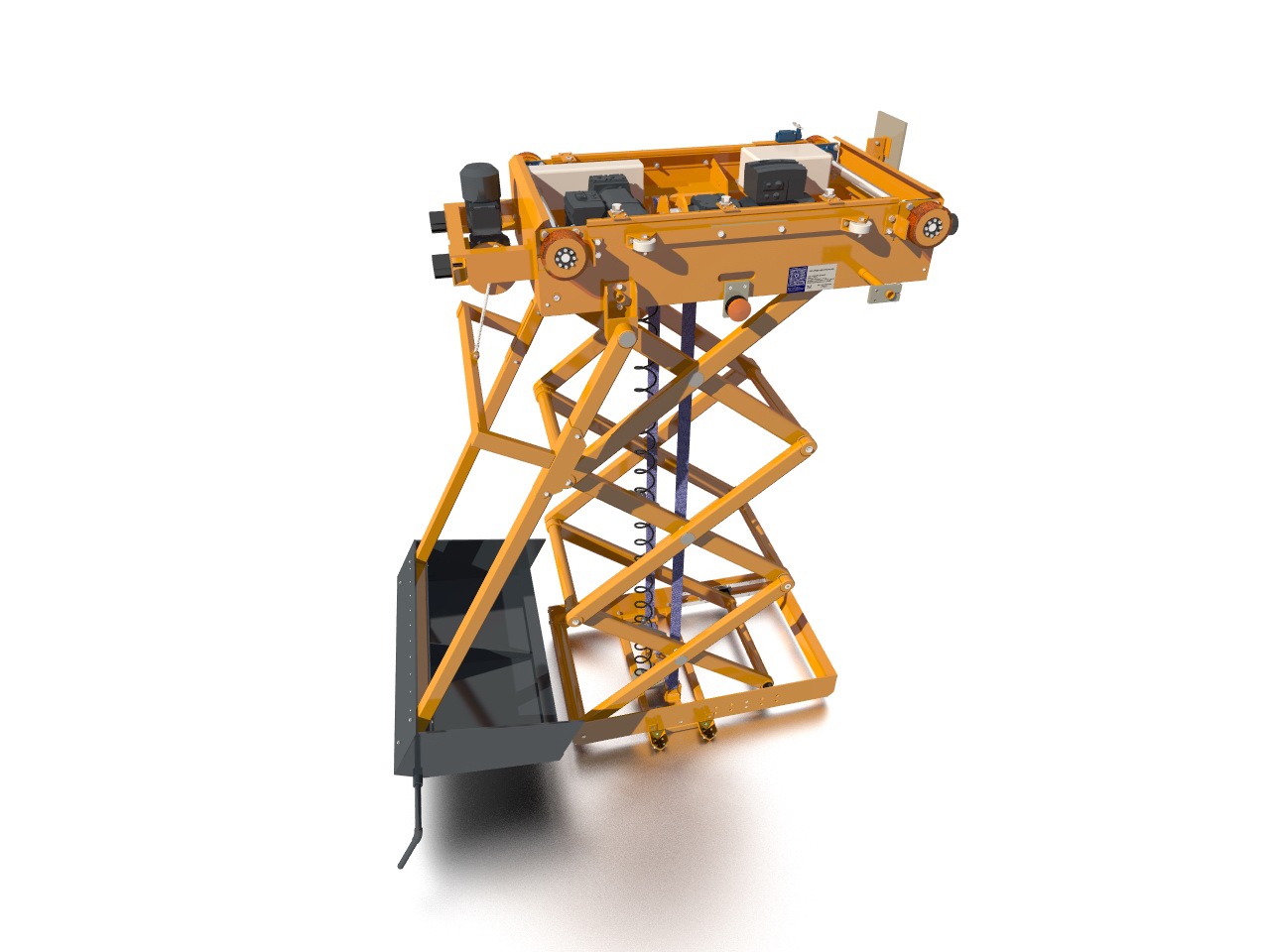

Scissor manipulator in the standard designs allows you to move loads up to 490 kg. It moves along the guide rails due to the drive wheels located in the truck. In the transverse direction of the truck manipulator is held by adjustable guide rollers. Vertical displacement of the carriage is provided with a scissor mechanism and a cargo belt.

The advantages of scissor manipulators manufactured by Poliplast Ltd.:

• The construction of the manipulator together with the transport routes allows the use of drum carriages, as well as suspension attachments, large, in comparison with the console manipulator
• Free access for maintenance and replacement of baths
• Ventilation box, moving together with the operator, to remove harmful fumes

Standard equipment

• The carriage with the driver for horizontal movement
• Scissor mechanism for vertical movement
• Carriage
• Pickup
• Sensor of carriage stop
• Laser distance measurement sensor
• Sensor of position engagement
• Sensor of tray stop

Optional extra

• Pallet for catching drops
• Wireless remote control of manipulators
• Collision sensor, when using two or more manipulators on one line
• ventilation skip
• A connection power of the drive of rotation of the drum
